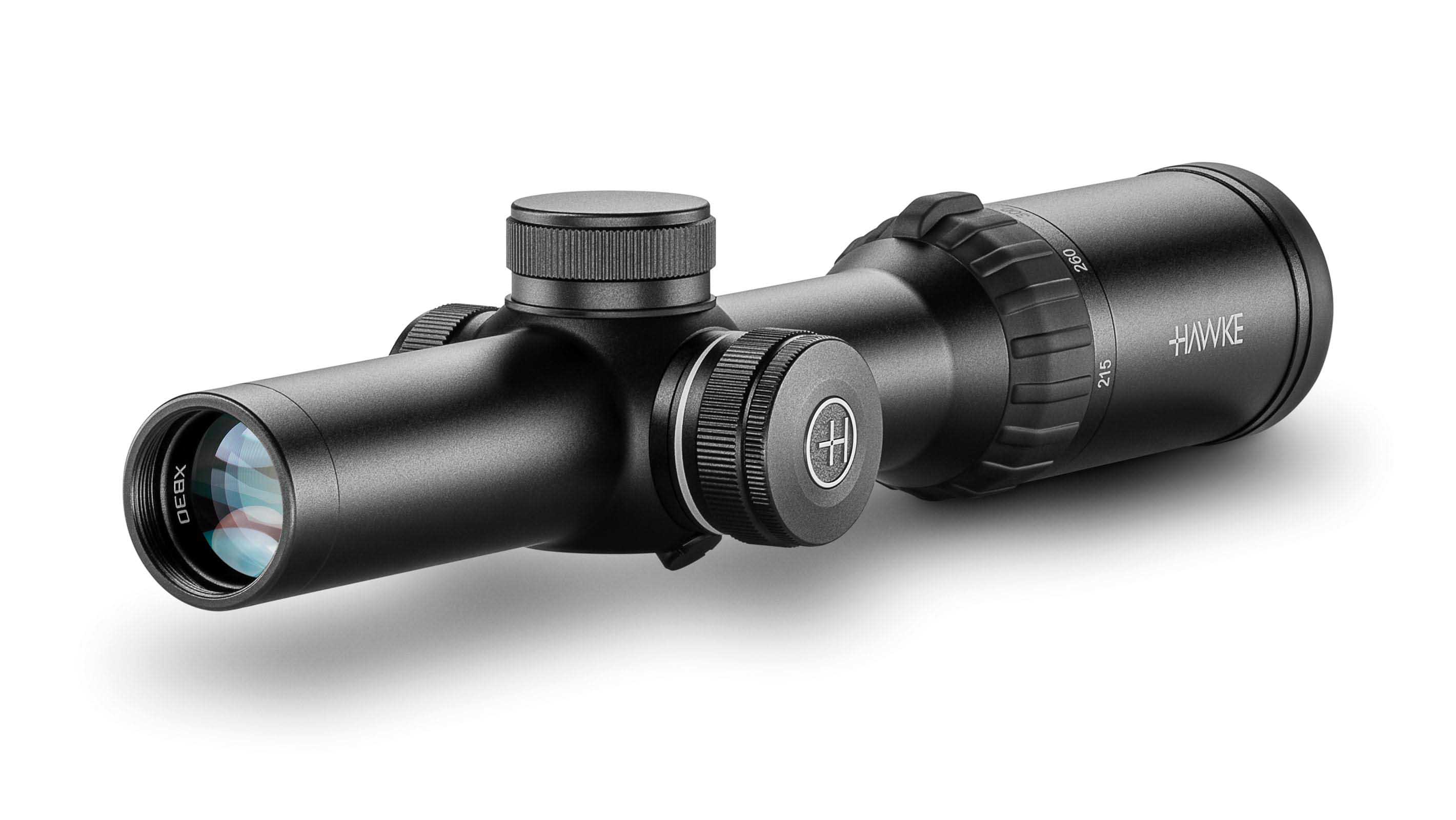

XB30 Pro 1-5x24 SR

Model: 12230
Barcode/EAN: 5054492122301

Availability



No stock, delayed despatch

$593.00
Calibrated For 215fps - 450fps

We didn't invent crossbow scopes... We perfected them.

Scopes designed to withstand the rigours of crossbows with reticle systems guaranteed to make you a better shot!

  • Capped Low-Profile Turrets
  • 30mm Mono-tube chassis
  • Illumination
  • 1⁄2 MOA low-profile fingertip turrets
  • Fixed parallax at 45 metres
  • 16 layer Fully Multi-Coated lenses
  • High torque zoom ring
  • Fast focus eyebell
  • Suitable speeds 215fps - 450fps

Nitrogen purged. Shockproof. Waterproof. Fog proof.

Hawke No-Fault Lifetime Warranty.


  • More Reticle Information
Line Drawing
  • SUPPLIED WITH
  • Box
  • Instruction Manual
  • Lens Cloth
  • Metal Flip-Up Lens Covers
  • Flip-Up Removal Tool
  • CR2032 Battery
Product Type  Crossbow Scope
Product Range  XB30 Pro
Objective Lens  24mm
Reticle  XB30 Pro SR
Parallax  Fixed
Magnification  1 - 5x
Optical System  System H2
Focal Plane  SFP (Second Focal Plane)
Scope Tube  30mm
Illumination  Stepless Rheostat - Red
Field of View (ft@100yds)  100 - 20.9
Field of View (m@100m)  33.3 - 7
Field of View (°)  19 - 4
Eye Relief (in)  3
Eye Relief (mm)  76
PX/Focus (yds)  50
PX/Focus (m)  46
Exit Pupil (mm)  24 - 4.8
Exit Pupil (in)  0.94 - 0.19
Turret Type  Capped
Turret Caps  YES
Click Value  1/2 MOA
Elevation Turret Clicks (max)  210 MOA
Windage Turret Clicks (max)  210 MOA
Ocular Type  Fast Focus
Power Selector  Rubber Coated Posi-Grip
Lens Coating  Fully Multi-Coated
Length (mm)  256
Length (in)  10.1
Weight (oz)  16.5
Weight (g)  468
