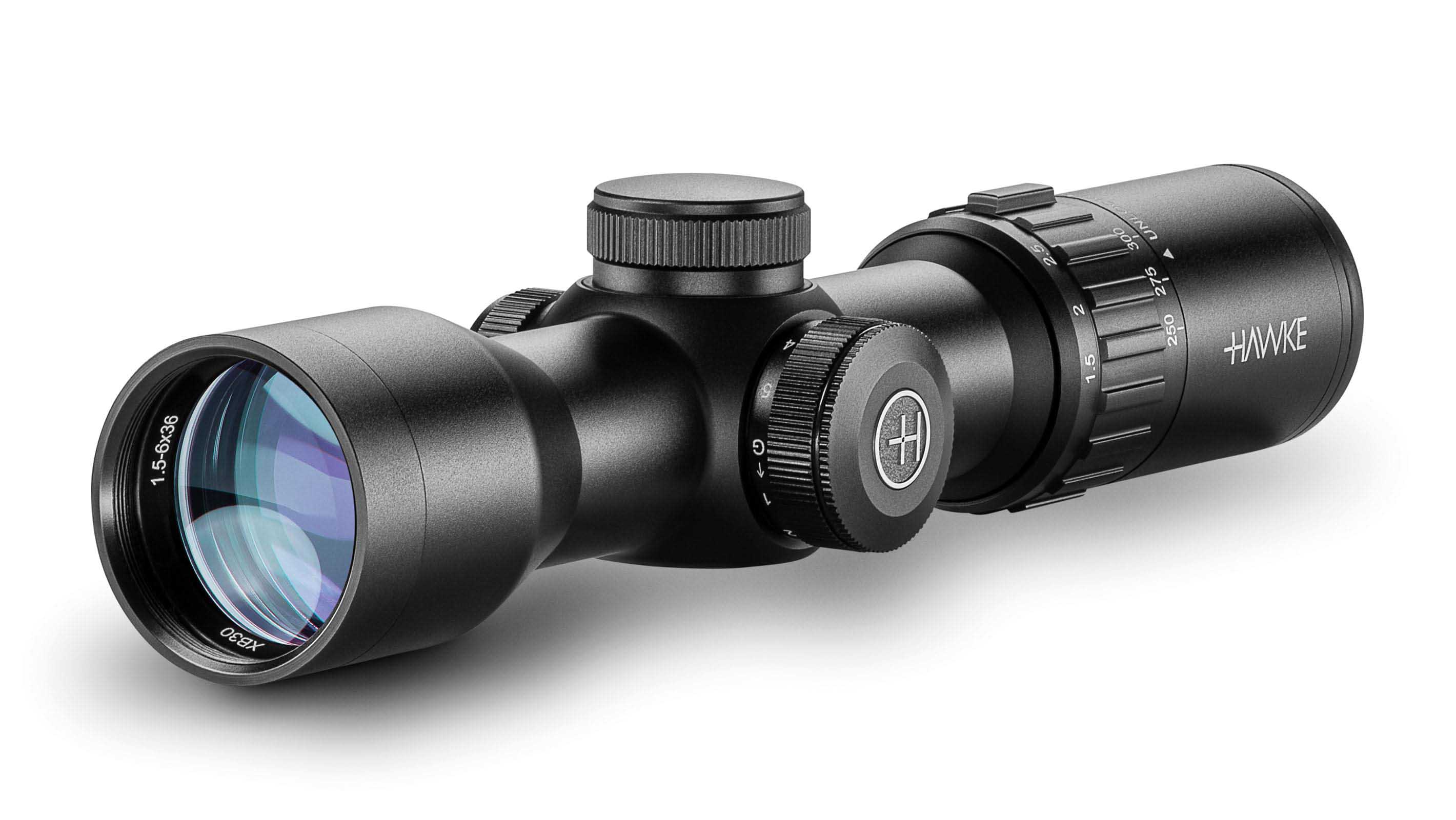

XB30 Compact 1.5-6x36 SR

Model: 12226
Barcode/EAN: 5054492122264

Availability



No stock, delayed despatch

$450.00
Calibrated For 250fps - 450fps

We didn't invent crossbow scopes... We perfected them.

Scopes designed to withstand the rigours of crossbows with reticle systems guaranteed to make you a better shot!

XB30 Compacts feature a Wide Angle optical system designed to give users the maximum view possible, a locking speed adjuster ring (patent pending) ensures the FPS setting is not changed once zeroed. XB30 Compacts feature a multi-line reticle with aim points out to 100 yards incorporating windage bars.

  • Capped Low-Profile Turrets
  • 30mm Mono-tube chassis
  • Wide Angle
  • Patented locking speed adjuster ring
  • Illumination
  • 1⁄2 MOA low-profile fingertip turrets
  • Fixed parallax at 46 metres
  • 14 layer Fully Multi-Coated lenses
  • High torque zoom ring
  • Fast focus eyebell
  • Suitable speeds 250fps - 450fps

Nitrogen purged. Shockproof. Waterproof. Fog proof.

Hawke No-Fault Lifetime Warranty.


Length:
236mm
9.3"
Weight:
429g
15.1oz
Eye relief:
76mm
3"
Focus/Parallax - Fixed
46m
50yds
Field of View:
29.3 - 7.3m @100m
87.9 - 21.8ft @100yds
Exit Pupil:
24-6mm
0.94-0.24"
Chassis
30mm Mono-tube
Optical System
1.5-6x
Objective
36mm
Illumination
Red / Green
Reticle
XB30 Compact SR
Elevation Increment
1⁄2 MOA
Elevation Adjustment Range:
180 MOA
Windage Increment
1⁄2 MOA
Windage Adjustment Range
180 MOA
Material
Aluminium
Ocular Type
Fast Focus
Lens Coating
Fully Multi-Coated - 14 Layers
Power Selector Style
Posi-Grip
Focal Plane
Second Focal Plane (SFP)
Turret Caps
Yes
Turret Type
Low Profile, No-Snag, Fingertip
Line Drawing
  • SUPPLIED WITH
  • Box
  • Instruction Manual
  • Lens Cloth
  • Flip-Up Lens Covers
  • CR2032 Battery
Product Type  Crossbow Scope
Product Range  XB30 Compact
Objective Lens  36mm
Reticle  XB30 Compact SR
Parallax  Fixed
Magnification  1.5 - 6x
Optical System  System H2
Focal Plane  SFP (Second Focal Plane)
Scope Tube  30mm
Illumination  5 Levels - Red/Green
Field of View (ft@100yds)  87.9 - 21.9
Field of View (m@100m)  29.3 - 7.3
Field of View ()  16.7 - 4.2
Eye Relief (in)  3
Eye Relief (mm)  76
PX/Focus (yds)  50
PX/Focus (m)  46
Exit Pupil (mm)  24 - 6
Exit Pupil (in)  0.94 - 0.24
Weight (oz)  15.1
Weight (g)  429
Length (in)  9.3
Length (mm)  236
Turret Type  Capped
Turret Caps  YES
Click Value  1/2 MOA
Elevation Turret Clicks (max)  180 MOA
Windage Turret Clicks (max)  180 MOA
Ocular Type  Fast Focus
Power Selector  Locking Speed Adjuster
Lens Coating  Fully Multi-Coated
