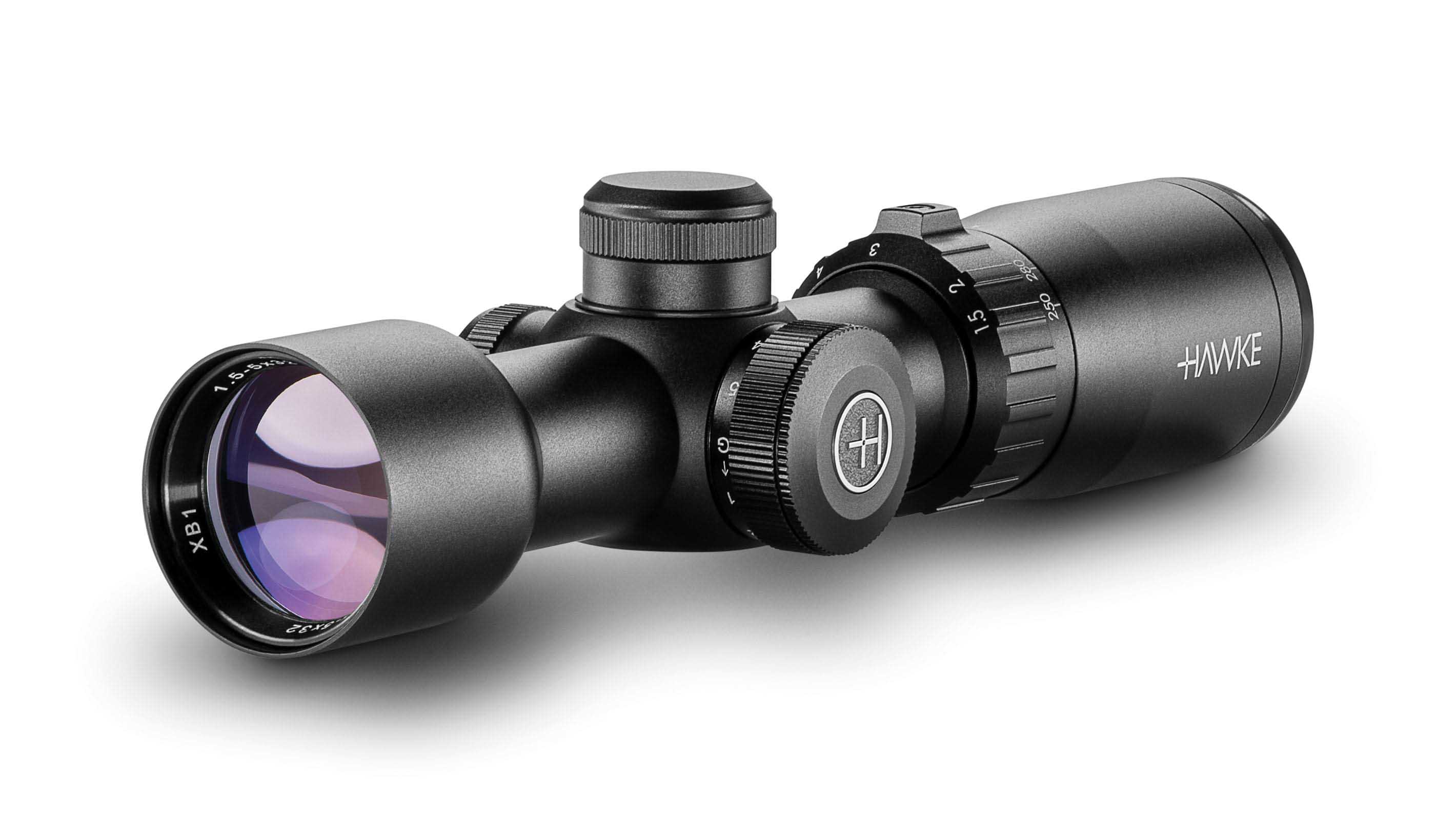

XB1 1.5-5x32 SR

Model: 12221
Barcode/EAN: 5054492122219

Availability



No stock, delayed despatch

$387.00
Calibrated For 250fps - 425fps

We didn't invent crossbow scopes... We perfected them.

Scopes designed to withstand the rigours of crossbows with reticle systems guaranteed to make you a better shot!

  • Capped Low-Profile Turrets
  • 1 Inch Mono-tube chassis
  • Illumination
  • 1⁄2 MOA low-profile fingertip turrets
  • Fixed parallax at 45 metres
  • 11 layer Fully Multi-Coated lenses
  • High torque zoom ring
  • Fast focus eyebell
  • Suitable speeds 250fps - 425fps

Nitrogen purged. Shockproof. Waterproof. Fog proof.

Hawke No-Fault Lifetime Warranty.


Line Drawing
  • SUPPLIED WITH
  • Box
  • Instruction Manual
  • Lens Cloth
  • Flip-Up Lens Covers
  • CR2032 Battery
Product Type  Crossbow Scope
Product Range  XB1
Objective Lens  32mm
Reticle  XB1 SR
Parallax  Fixed
Magnification  1.5 - 5x
Optical System  System H2
Focal Plane  SFP (Second Focal Plane)
Scope Tube  1 Inch
Illumination  5 Levels - Red/Green
Field of View (ft@100yds)  75 - 22.5
Field of View (m@100m)  25 - 7.5
Field of View ()  14.3 - 4.3
Eye Relief (in)  3
Eye Relief (mm)  76
PX/Focus (yds)  50
PX/Focus (m)  46
Exit Pupil (mm)  21.3 - 6.4
Exit Pupil (in)  0.84 - 0.25
Turret Type  Capped
Turret Caps  YES
Click Value  1/2 MOA
Elevation Turret Clicks (max)  120 MOA
Windage Turret Clicks (max)  120 MOA
Ocular Type  Fast Focus
Power Selector  Knurled Posi-Grip
Lens Coating  Fully Multi-Coated
Length (mm)  211
Length (in)  8.3
Weight (oz)  13
Weight (g)  368
