Accurate distance measurement at the press of a button!

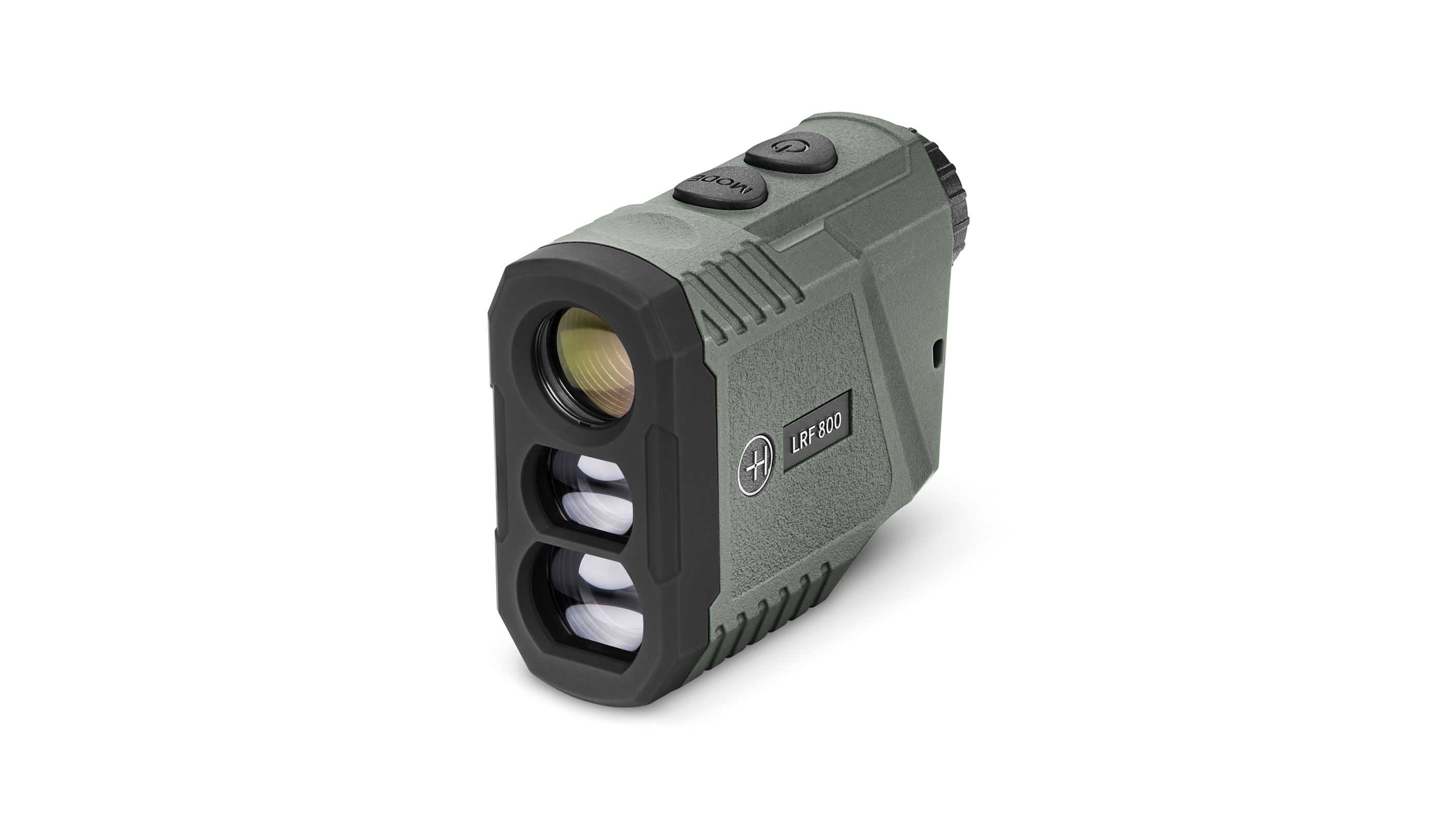

Hawke Laser Range Finders are designed to deliver highly accurate distance measurements with the press of a button. They are ergonomically constructed to fit comfortably in your hand with easy access to both of the control buttons.
Its range finding capabilities include: Distance (inc. continuous scan mode), Rain, Flag, Hunt
- Fully Multi-Coated optical system – BK-7 prisms
- 6x magnification and an adjustable dioptre
- Wide Angle optical system
- Measure distances accurate to +/- 1 metre/yard
- Auto shut off battery save feature
- Lightweight and compact construction
- Ergonomically designed to fit in your hand
Nitrogen purged. Waterproof. Fog Proof.
Hawke Two Year Warranty.
Operating Modes
STANDARD MODE
Standard mode measures the straight line distance to the target you are aiming at. It is measured to the nearest yard/meter. When there is nothing displayed in the targeting modes area of the display (to the left of the distance), you are in Standard mode.
Active Scan: If you hold the POWER button while in Standard mode the range finder will continuously scan so you can move around and get constant updates of the distance.
RAIN MODE
Rain mode measures the straight line distance to the target, but ignores any interference from falling raindrops.
HUNT MODE
Hunt mode measures the straight line distance to the target, but ignores any interference from long grass or brush that stands between you and the target, ideal for measuring the distance to a deer that's walking through long grass or woodland.
When Hunt mode is triggered the Hunt mode icon will have a circle around it.
FLAG MODE
Flag mode measures the straight line distance to the pin by actively searching for the flag sitting in the foreground, ideal for measuring the distance to the pin and helping with club selection. When Flag mode is triggered the icon will have a circle around it.
1
2
3
4
5
6
7
LCD Display
- Aim point with horizontal and vertical guides.
- Measuring units (M = meters, Y = yards)
- Distance readout
- Targeting modes
- Signal strength readout
- Laser emission signal
- Low battery indicator
Product Type
Laser Range Finder
Product Range
LRF 800
Objective Lens
1
Magnification
6x
Scope Tube
25
Field of View (ft@100yds)
341
Field of View (m@100m)
114
Eye Relief (in)
0.6
Eye Relief (mm)
15
Lens Coating
Multi Anti-Reflective
Modes
Standard // Rain // Flag // Hunt
Display
LCD
Range (yds)
7 - 875
Range (m)
6 - 800
Accuracy (yds)
±1
Accuracy (m)
±1
Battery
3V CR2
Angle Range (°)
N/A
WA Optical System (°)
N/A
Operating Temp (°F)
14°F to 104°F
Operating Temp (°C)
-10°C to 40°C
Waterproof Rating
IPX5
Length (mm)
94
Length (in)
3.7
Height (in)
3.1
Height (mm)
78
Weight (oz)
4.6
Weight (g)
130
