All Frontier models feature Hawke’s new H7 optics, offering stunning high definition viewing with incredible colour control and phase correction.

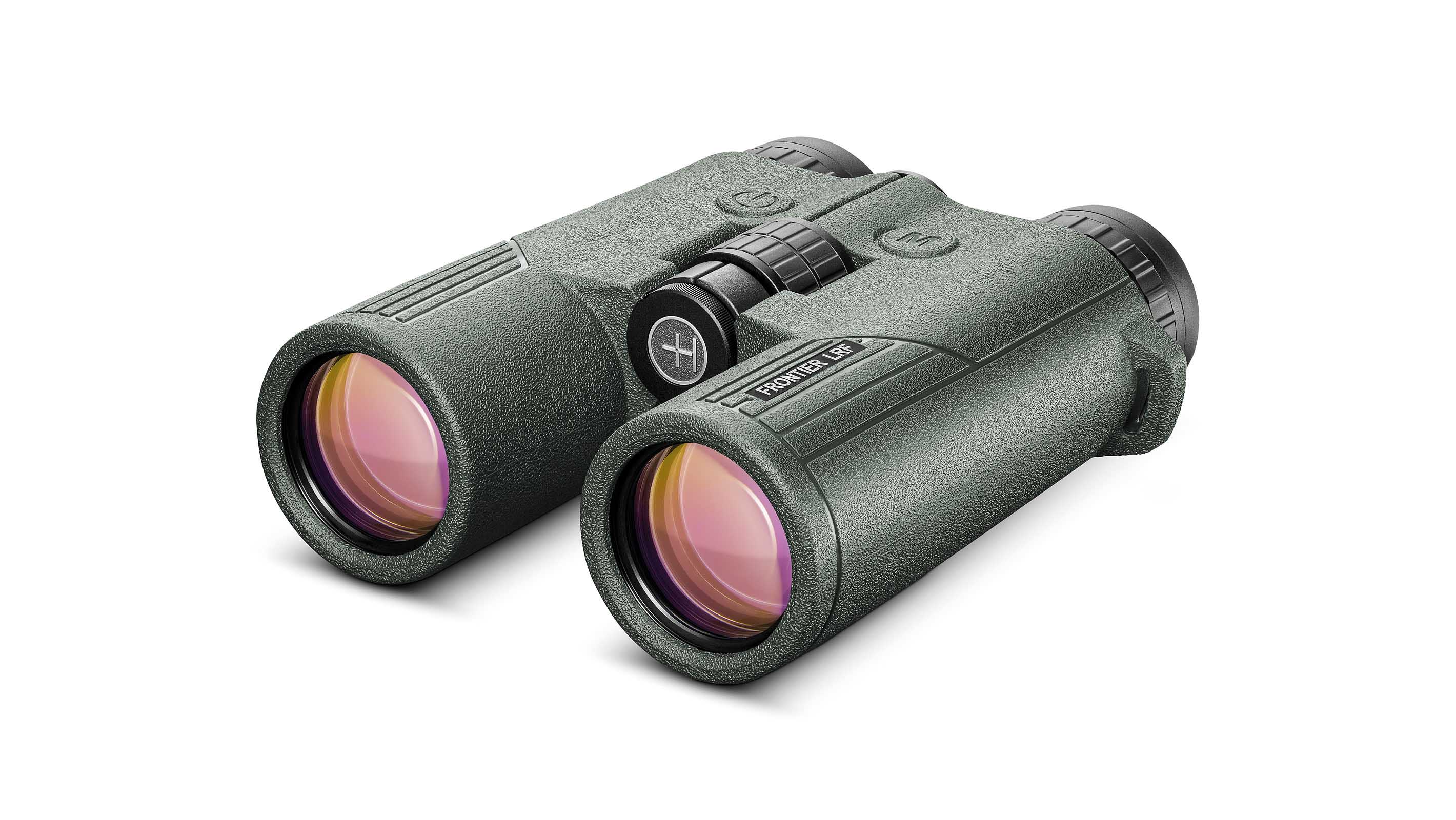

The Hawke Frontier LRF binoculars use high light transmission optics and a red coloured OLED display to make the view to your target clearer than ever before. Frontier LRF Binoculars are designed to deliver highly accurate distance measurements with the press of a button. They are ergonomically constructed to fit comfortably in your hand with easy access to both of the control buttons.
Its range finding capabilities include: Distance, Rain, Hunt, Near, Horizontal Distance and Angle modes. The display brightness can be manually adjusted between 6 levels of brightness. The LRF requires a 3V CR2 battery and will automatically turn off after 15 seconds of no operation to save power.
- Fully multi-coated Optics
- High Light Transmission With True Colour Optics
- 8x Magnification And An Adjustable Dioptre
- OLED Display - 6 Brightness levels
- Auto Shut Off Battery Save Feature
- Accuracy ± 1 metre
- Water repellent lens coatings
- Magnesium alloy chassis
- Replaceable twist-up eye cups with position stops
- Supplied with Binocular Harness Pack.
Nitrogen purged. Waterproof. Fog proof.
Hawke No-Fault Lifetime Warranty.
(2 year warranty on the electronics)
1
2
3
4
5
6
7
LCD Display
- Aim point with horizontal and vertical guides.
- Measuring units (M = meters, Y = yards)
- Distance readout
- Targeting modes
- Horizontal and angle readout
- Laser emission signal
- Low battery indicator
Product Type
Binocular
Product Range
Frontier LRF
Objective Lens
42mm
Colour
Green
Magnification
8x
Optical System
System H7
Field of View (°)
7.5
Eye Relief (in)
0.6
Eye Relief (mm)
16
Exit Pupil (mm)
5.3
Exit Pupil (in)
0.21
Lens Coating
Wide Band / Anti-reflection / Fully Multi-Coated Lenses with Water Repellent Coating
Field of View (ft@1000yds)
393
Field of View (m@1000m)
131
Apparent Field of View (°)
60
Interpupillary Distance (in)
2.2 - 3
Interpupillary Distance (mm)
2.2 - 3
Close Focus (ft)
33
Close Focus (mm)
10.1
Prism Type
Patented Prism System with Beam Split Coating
Eye Cups
Twist-Up (Replaceable)
Diopter Type
Left Eye
Tripod Mounting Thread
No
Modes
Standard // Horizontal Distance // Angle // Rain // Near // Hunt
Display
OLED
Range (yds)
11 - 1968
Range (m)
10 - 1800
Accuracy (yds)
±1
Accuracy (m)
±1
Angle Range
90º
Battery
3V CR2
Waterproof
IPX7
Height (in)
6.5
Height (mm)
165
Width (mm)
115 - 138
Width (in)
4.5 - 5.4
Weight (oz)
35.2
Weight (g)
999
